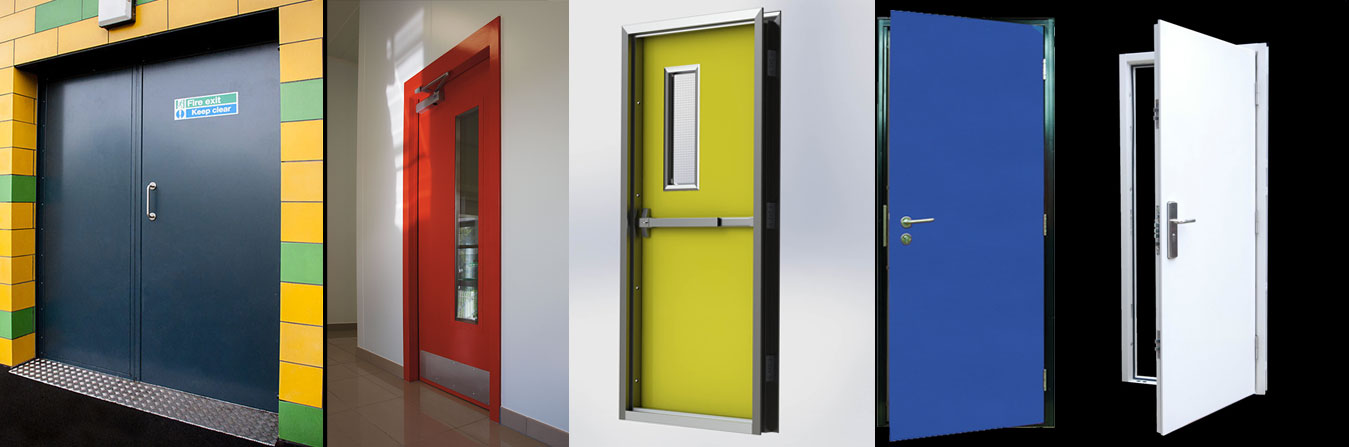

Vanguard Steel Security Doors are used for the high secure areas on residential and commercial buildings. Security doors can be used as the external doors for residential and commercial buildings. Extra security steel doors are available for Banks, Financial Offices etc. By using Vanguard High Security Steel Doors, we make sure that the extruders cannot enter the restricted area for a limited/Controlled period of time.

Specifications:

Steel Frames:

Frames are constructed of 2.0mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet ASTM A526. All bends shall be formed with a true sharp radius.

Steel Shutters:

45mm or 54mm thick full flush construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.6mm (16ga.) Vertical edges are interlocked. 1.6mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Available with wide range of glass light and louver preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

3 point locking mechanism with Heavy duty SS Butt Hinges will be provided for Vanguard Security Doors. All Ironmongeries used on security steel doors will be with high quality and standards which are internationally approved and listed.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

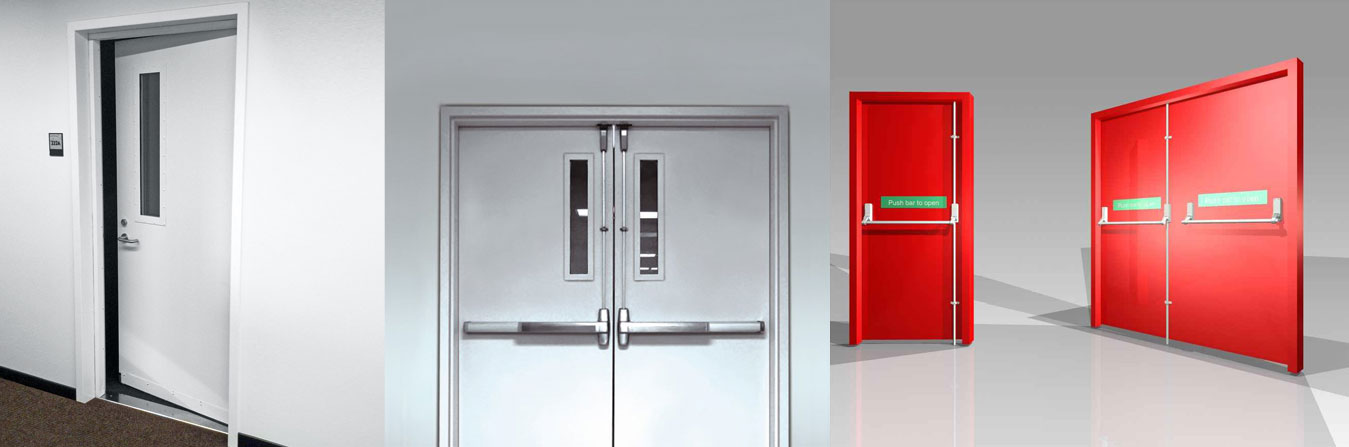

Vanguard Steel Fire rated Doors are mainly used on fire egress area within a building complying with the building regulation and code. By installing a Steel Fire Door, one makes sure that any person inside a building under fire can escape through the designated fire door in that egress path. Also the Fire Fighters or marshals can enter the building under fire through the fire doors which will reduce the fire calamities on building and human life. Fire ratings are provided in minutes for fire door from which desired ratings can be selected according to the building regulations.

Specifications:

Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius.

Steel Shutters:

45mm (13/4") thick full flush construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Available with wide range of glass light and louver preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

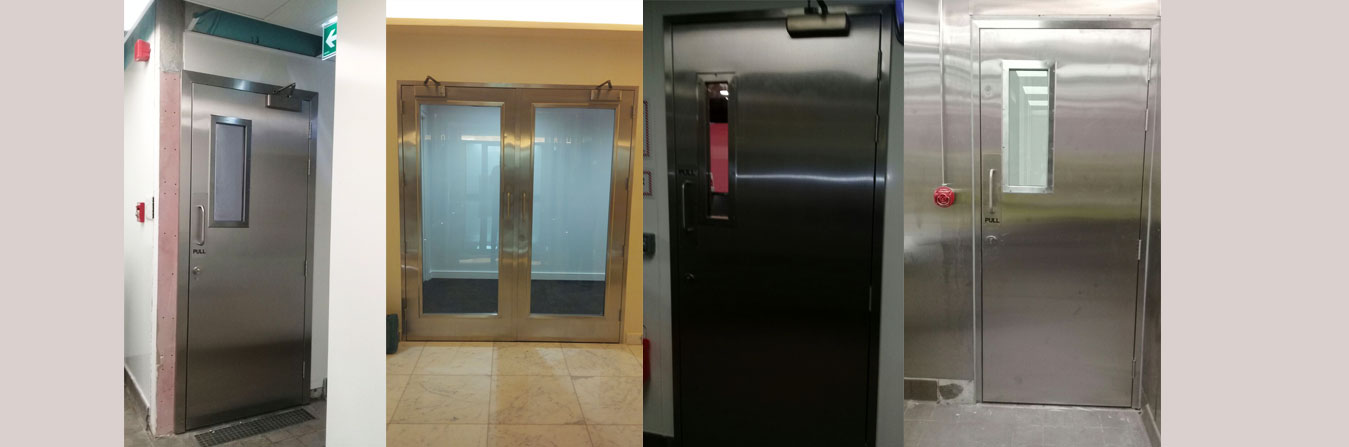

Vanguard Stainless steel doors are used in clean environments where extra hygiene is required. Hospitals, Kitchen areas on restaurants and Hotels are the major areas where Stainless steel doors are used. Both (304 and 316) grades are available on Vanguard Stainless steel doors. Finishes available are Brush finish (hair line) & Mirror finish. Stainless Steel doors are easy to clean and look nice to your clean areas. Stainless Steel’s anti rust property will avoid the doors from rusting even in wet areas. Proper periodic maintenance shall be done on Stainless steel doors in order to avoid rusting.

Specifications:

Stainless Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality Stainless Steel 304 grade or 316 grade of 45mm (13/4") thickness with the details conforming to SDI-111A. All bends shall be formed with a true sharp radius.

Stainless Steel Shutters:

45mm (13/4") thick full flush construction with the details confirming to SDI-111A-EDGE considered. Manufactured from Stainless steel 304 or 316 grade. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Available with wide range of glass light and louver preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Stainless Steel Finish:

Stainless steel doors are available on Brush (Hair line) finish and Mirror finish.

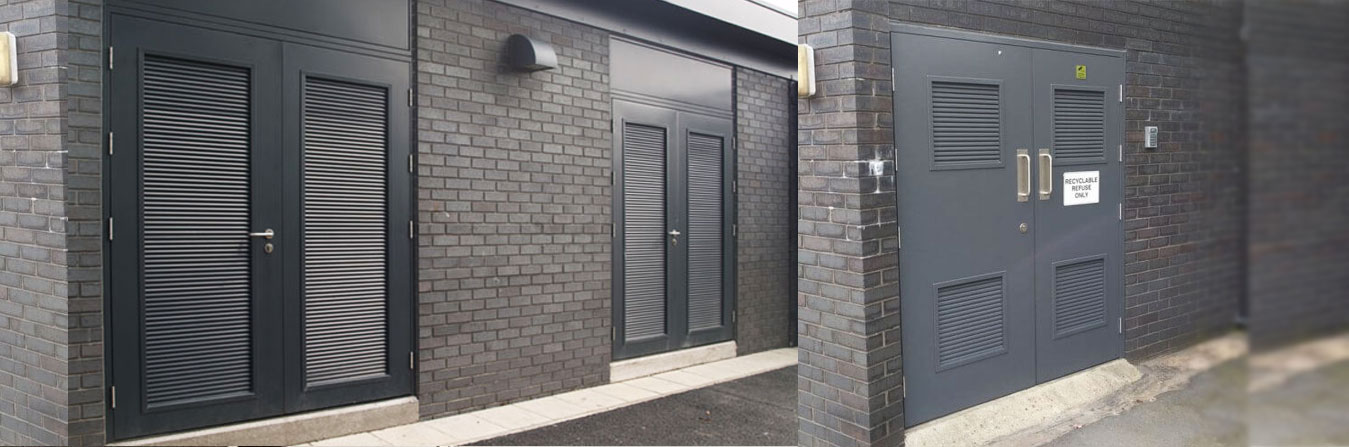

Vanguard Steel Louver doors are used mainly in factories, generator rooms, compressor rooms, electrical rooms wherever air flow is required in order to reduce the temperature of machines inside the room. Steel louver blades with air spacing allows fresh air to enter inside and exits the heated air and hence reduces the air temperature inside the room. Steel Louver doors will be Non Fire rated.

Specifications:

Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius

Steel Shutters:

45mm (13/4") thick Steel Fully Louver with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI standards requirements.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

Vanguard Steel Acoustic Doors are intended for the use of reducing sound for specific purposes. Tested to various acoustic ratings, acoustic doors are widely used in shopping malls, audio studios, Schools, Hospitals; Movie theatres etc. wherever sound deadening is required. Imported Acoustic seals will be used as per the STC/dB Ratings required.

Specifications:

Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius.

Steel Shutters:

45mm (13/4") thick full flush Rockwool construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Available with wide range of Acoustic glass light preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

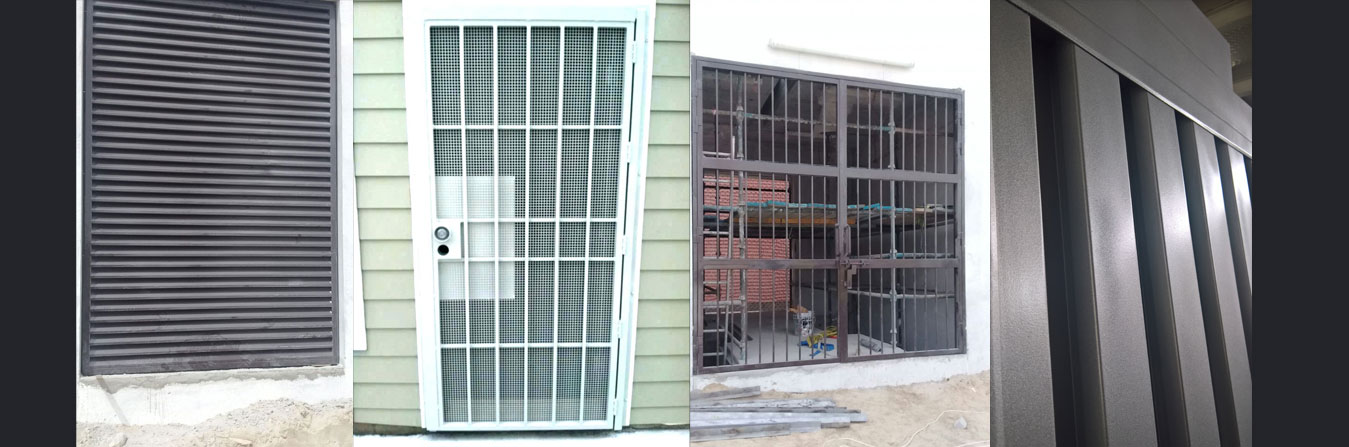

Vanguard Steel Grill doors are used mainly in factories, Security areas wherever normal security is required.

Specifications:

Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius.

Steel Shutters:

45mm (13/4") thick Steel Grill door with steel rods with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI standards requirements.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

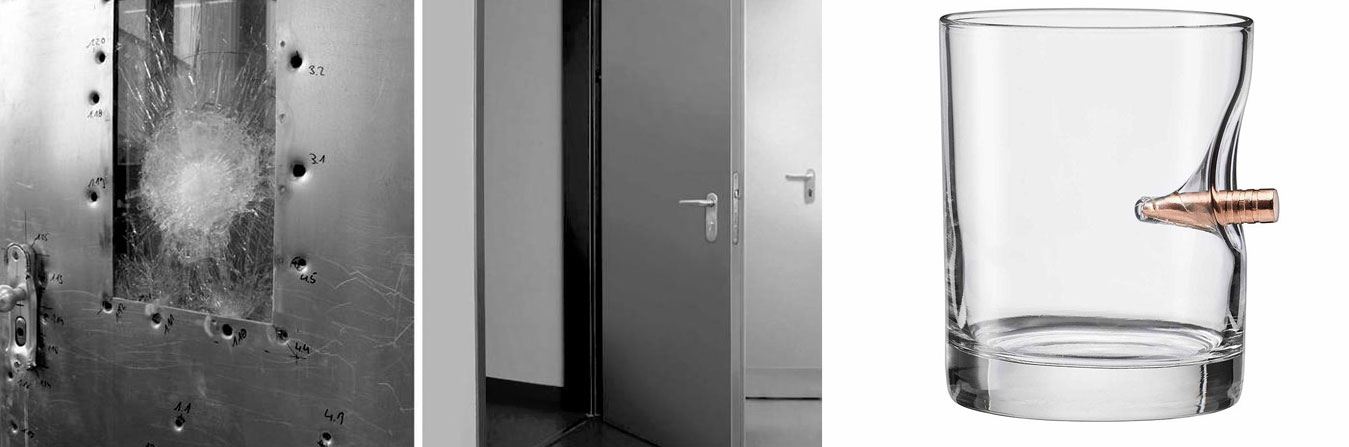

Vanguard Steel Bullet Doors are intended for the use of securing personals and assets from intruders. Vanguard Bullet Proof Doors are tested as per International Standards of various BR- LEVEL Ratings.

Specifications:

Steel Frames:

Frames are constructed of 2.0mm or 3.0mm commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius. Frames shall be cement grouted from site.

Steel Shutters:

45mm (13/4") thick full flush Rockwool + bullet resistant layer construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.5mm or 2.0mm shutter thickness with Vertical edges interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Available with wide range of Bullet proof glass light preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

ANSI standard ironmongeries will be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

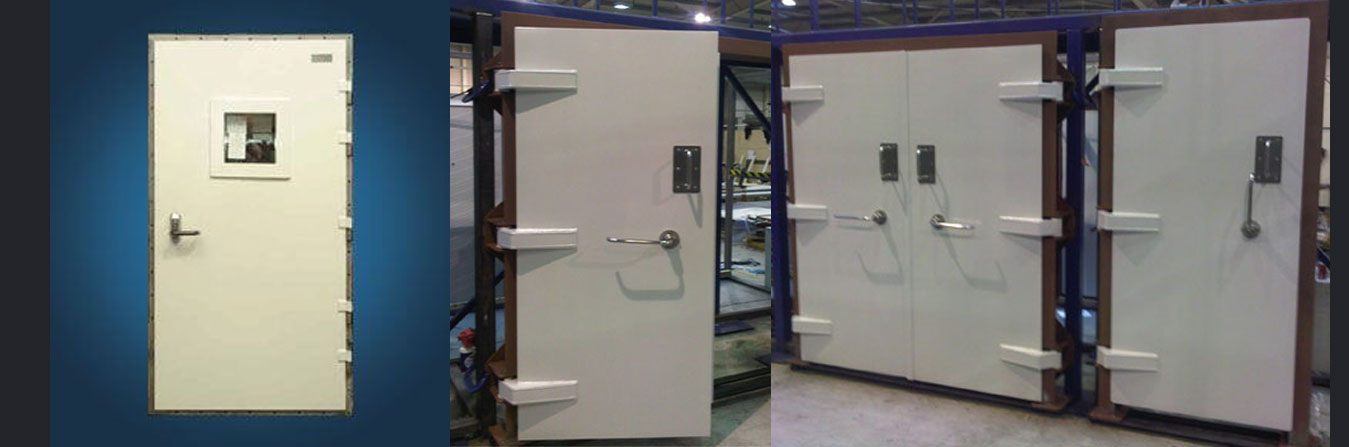

Vanguard Steel Blast Doors are intended for the use of securing personals and assets from intruders. Vanguard Blast Proof Doors are tested as per International Standards of various Blast level psi ratings.

Specifications:

Steel Frames:

Frames are constructed of tubular construction as per the tested standards. Frames shall be cement grouted from site.

Steel Shutters:

Steel shutters are constructed of tubular construction as per the tested standards.

Ironmongery:

ANSI standard ironmongeries will be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

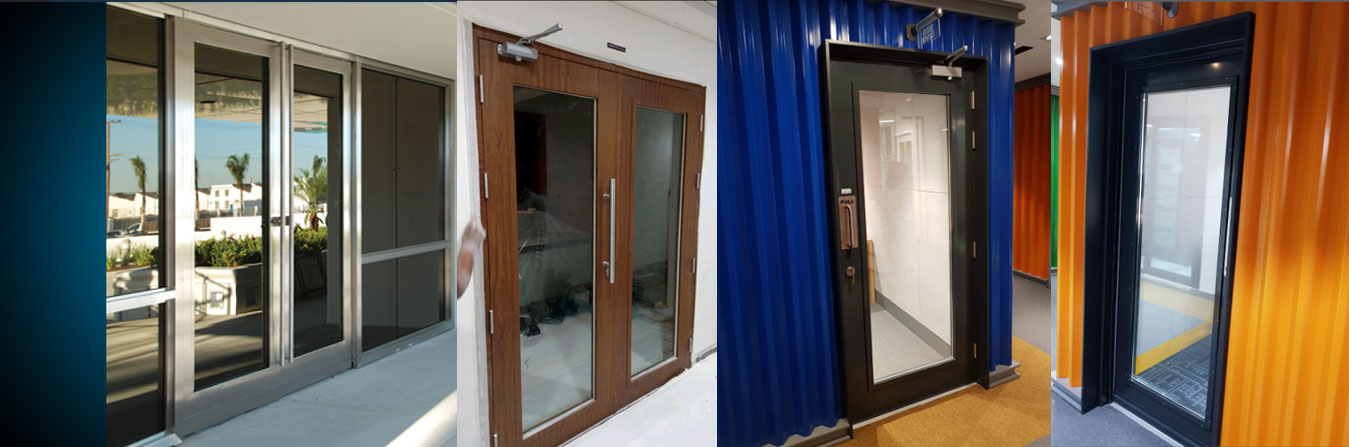

Vanguard Steel Glazed Doors are used widely in offices, Shopping malls etc. wherever entrances need total visibility. Glazed doors are also available with side lite panels and top transom lite panels as per requirements. Fire Tested Steel Fully Glazed Doors with side lite panels and top transom lite panels are also available on request.

Specifications:

Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius.

Steel Shutters:

45mm (13/4") thick full flush Honeycomb construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

Vanguard Steel windows are used in residential and commercial buildings. Vanguard windows are manufactured with steel frames bended to specific sizes and steel rods welded for additional security. Both fixed type and openeble type steel windows are available on request.

Ral Color & Finish:

All Steel Windows shall be primer coated and can be site painted as per the color selection of client.

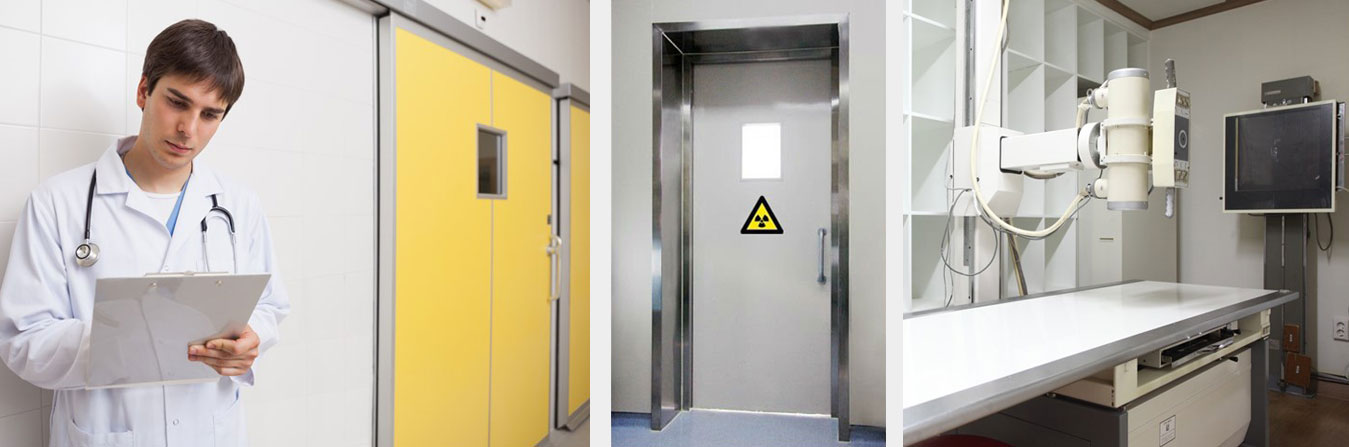

Vanguard Steel Lead lIne doors are intended for the use of X Ray rooms in hospitals.

Specifications:

Steel Frames:

Frames are constructed of 1.5 mm or 1.2mm commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. Lead lining shall be provided on exposed side of the frame. All bends shall be formed with a true sharp radius. Frames shall be cement grouted from site.

Steel Shutters:

45mm (13/4") thick full flush honeycomb construction with lead lining will be provided with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm or 1.5mm shutter thickness with Vertical edges interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

ANSI or BS standard ironmongeries will be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

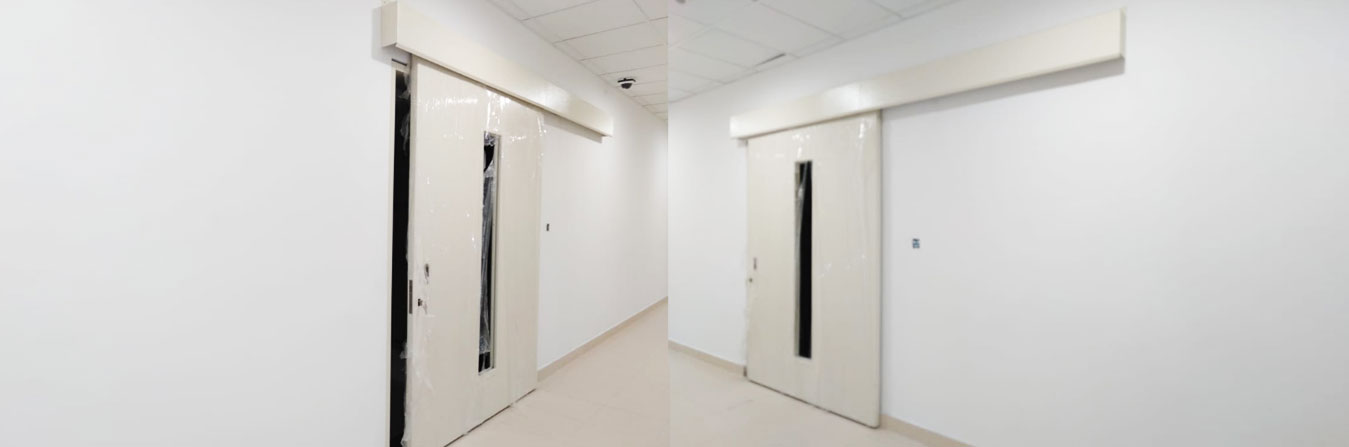

Vanguard Steel Sliding Doors are used for hospitals and offices. Mechanical and Automation can be provided for Steel Sliding doors as per requirements.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

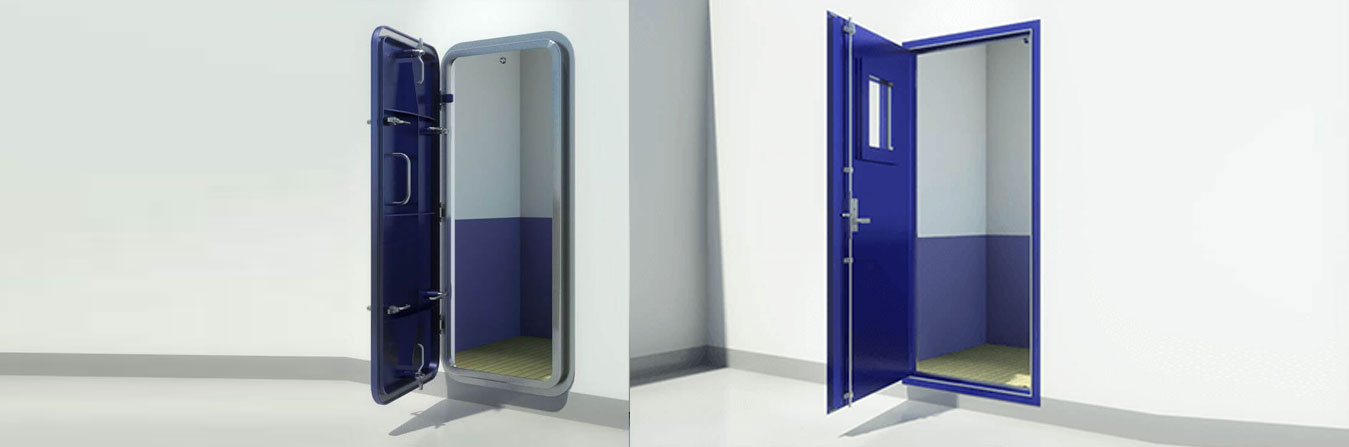

Vanguard Steel Off shore Marine A60 Doors are intended for the use of marine applications especially in ships. High Quality Imported Marine doors will be provided by Vanguard upon request. Special mounted Ironmongeries will be used for Marine Doors.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. On special request, Vanguard can provide up to 150 microns also as per the project requirements. Texture and Smooth finish can be made on Steel doors as per request. Internationally used Ral color codes are being followed by Vanguard Steel Doors. Ral color chart can be provided on request.

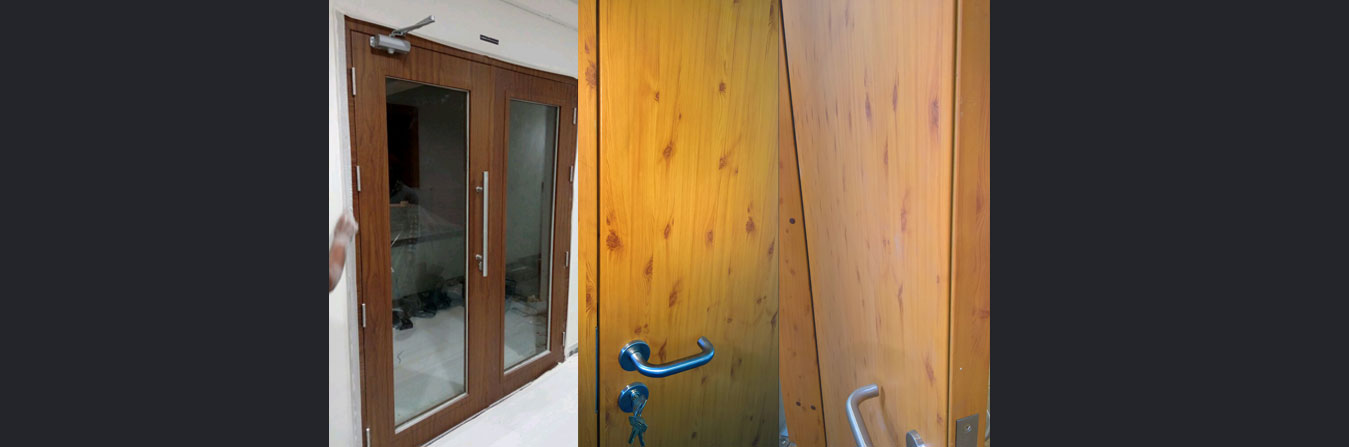

Vanguard Steel Wooden Finish Doors are mainly used in residential and offices. Fire ratings are provided in minutes for fire door from which desired ratings can be selected according to the building regulations. Various shades of grains are available on request for wooden finishes. Vanguard Steel Wooden finish doors are a good replacement of traditional wooden doors. Steel Wooden finish doors are more durable and easy to maintain compared to traditional wooden doors.

Specifications:

Steel Frames:

Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet. All bends shall be formed with a true sharp radius.

Steel Shutters:

45mm (13/4") thick full flush construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labeled up to 2 hours. Available with wide range of glass light and louver preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.

Ironmongery:

BS standard Ironmongeries will be used for all standard steel doors. ANSI standard ironmongeries can also be provided as per requirements. All concealed cutouts on frames and shutters will be made from factory. Standard Steel Door will be with 3 or 4nos. Stainless Steel Butt Hinges, Mortise Lockset, Euro profile Double Cylinder, SS Lever Handle, Door Closer, Door Stopper and Weather Strips. Ironmongery will be supplied separately along with doors and frames. Installation Manual will be provided along with each ironmongery item.

Ral Color & Finish:

All Steel doors are electrostatically factory powder coated in oven under high temperature. 70 to 80 microns will be the standard coating thickness used. Once powder coated, special wooden finish filming is provided with selected grains and color.

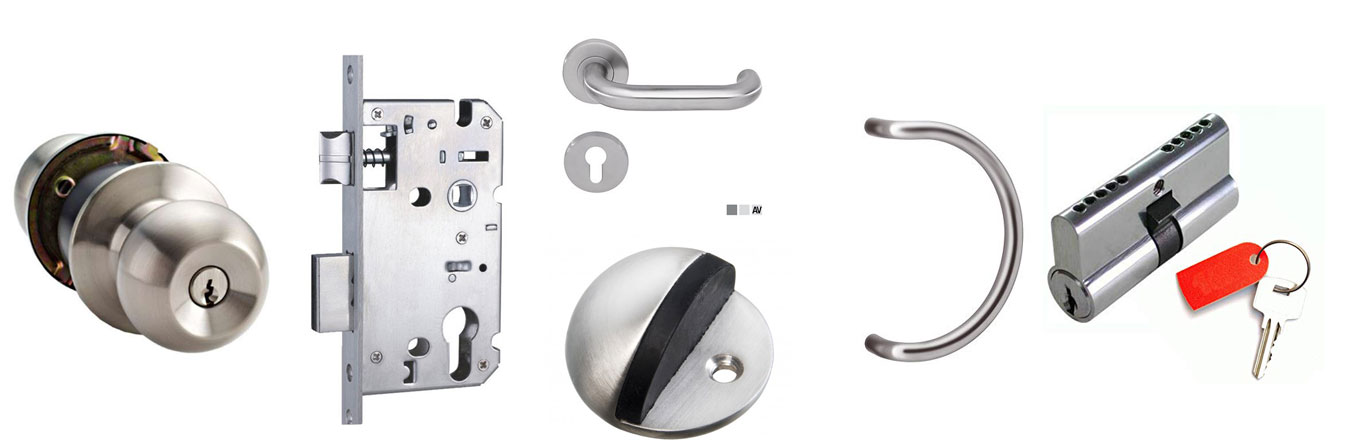

Vanguard provides wide variety of ironmongeries for steel and wooden doors. International brands (DORMA, HAFELE etc.) can be provided for doors. BS standard Ironmongeries & ANSI standard ironmongeries also are provided as per requirements. Kindly send enquiry with required ironmongeries for pricing and technical data sheets.

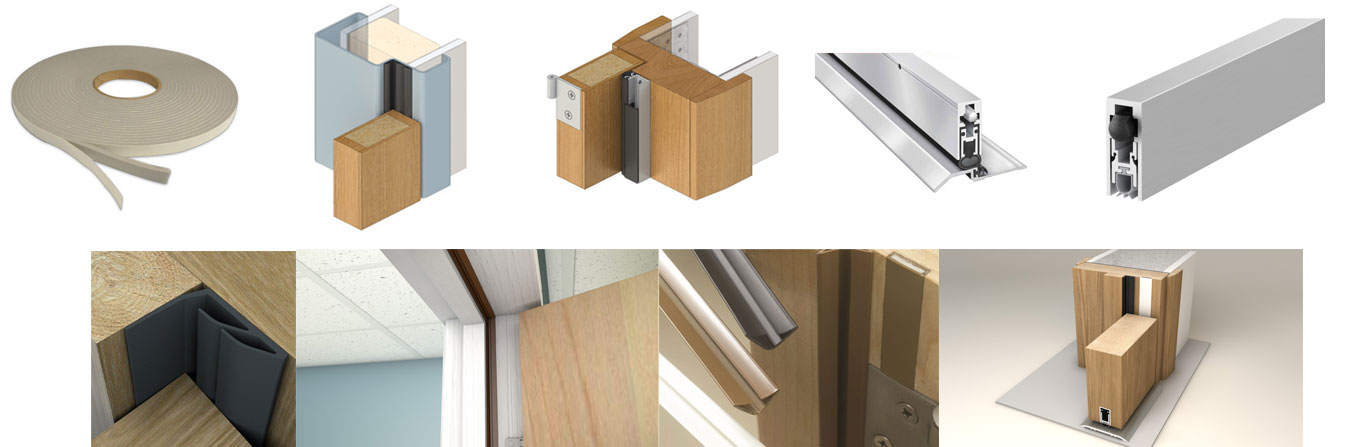

Vanguard provides wide variety of acoustic seals in order to achieve acoustic ratings for steel and wooden doors. International Brands are available upon request. Below mentioned are standard acoustic seals which are used widely for steel and wooden doors:
• Auto drop seal
• Perimeter seal
• Batwing seal
• Weather seal
• Bottom Brush / Seal
• Groove seal
• Astragal seal
• Intumescent stripes
• Seals for Glass

Vanguard provides wide variety of glazing solutions. Below mentioned are the main varieties provided:
• Clear Tempered Glass
• Wired Glass
• Fire Rated Glass
• Fire Rated Glass DGU
• Acoustic Glass DGU
• Frosted Glass

Vanguard provides wide variety PU Foams (NFR & FR) and Silicon Sealants (FR & NFR) as per requirements. Acoustic PU Foams are also available on request.
